Baby8 Sequencer Kit V3
£28.00 – £30.49
The Rakit Baby8 step analogue sequencer version 3 includes all the great features of previous versions plus some awesome additions! *Sequence length between 1 and 8 steps *0-5V CV outputs *20% to 80% gate duty output *Buffered clock input *Each step has it’s own CV potentiometer, led & switch *Battery powered (battery is not included) *Connects to the Rakit mini APC and Drum Synth *NEW Step Skipping Mode To find out more please read the full description below…
Kit Assembly
This kit is rated as easy, takes around 2 hours to make and is suitable for all ages. The only equipment needed to complete this kit is a soldering iron and a pair of flush cutters. A 2-3g pack of SAC305 Lead free solder is included – the perfect amount to build your kit!
What Is A Baby8?
The Baby8 is not an instrument in itself, but a controller of a vast array of other noise making devices with a 0-5V CV input. Examples include our Mini Atari Punk Console, synthesizers, drum machines, effects pedals – the list is endless!
Build Support
We are unable to provide individual customer support with kit building so please see the detailed assembly guide here to gauge difficulty before purchasing. Once started, kits cannot be refunded. We also have a handy soldering tutorial here!
2X FUNCTION OPTIONS
Step Reset Mode
Set the length of your sequence from 1-8 steps in this mode. Simply set the switch after your chosen number of steps to reset and away you go!
Step Skipping Mode
When selected, this mode enables you to set any of the switches (2-8) to ‘skip’ and then continues with the rest of the sequence creating all manner of funky rhythms!
CONNECT TO OUR MINI APC
A set of connectors is included in your kit, use them to bring the Baby8 and mini APC together for all sorts of fun which you can see in the video demo further down the page. The set consists of two strips of pin headers and 5 multi-coloured jumper cables to connect power sharing, 2x CVs, Gate and Ground.
don’t just take our word for it!!
“Good description, easy transaction. Brilliant kit. Thanks”
“Awesome kit, excellent instructions! This was my first real soldering project, and I couldn’t be more pleased with how it turned out. Be sure to order the CV-out pin header option for more fun with external modular toys. I use it with my Bastl Kastle for hours of sound making :-)”
“Outstanding Item arrived as advertised and very safely packaged, Thank You!!!!!!”
“Very Good Very Easy just took 90 mins to complete and is good fun to use *******”

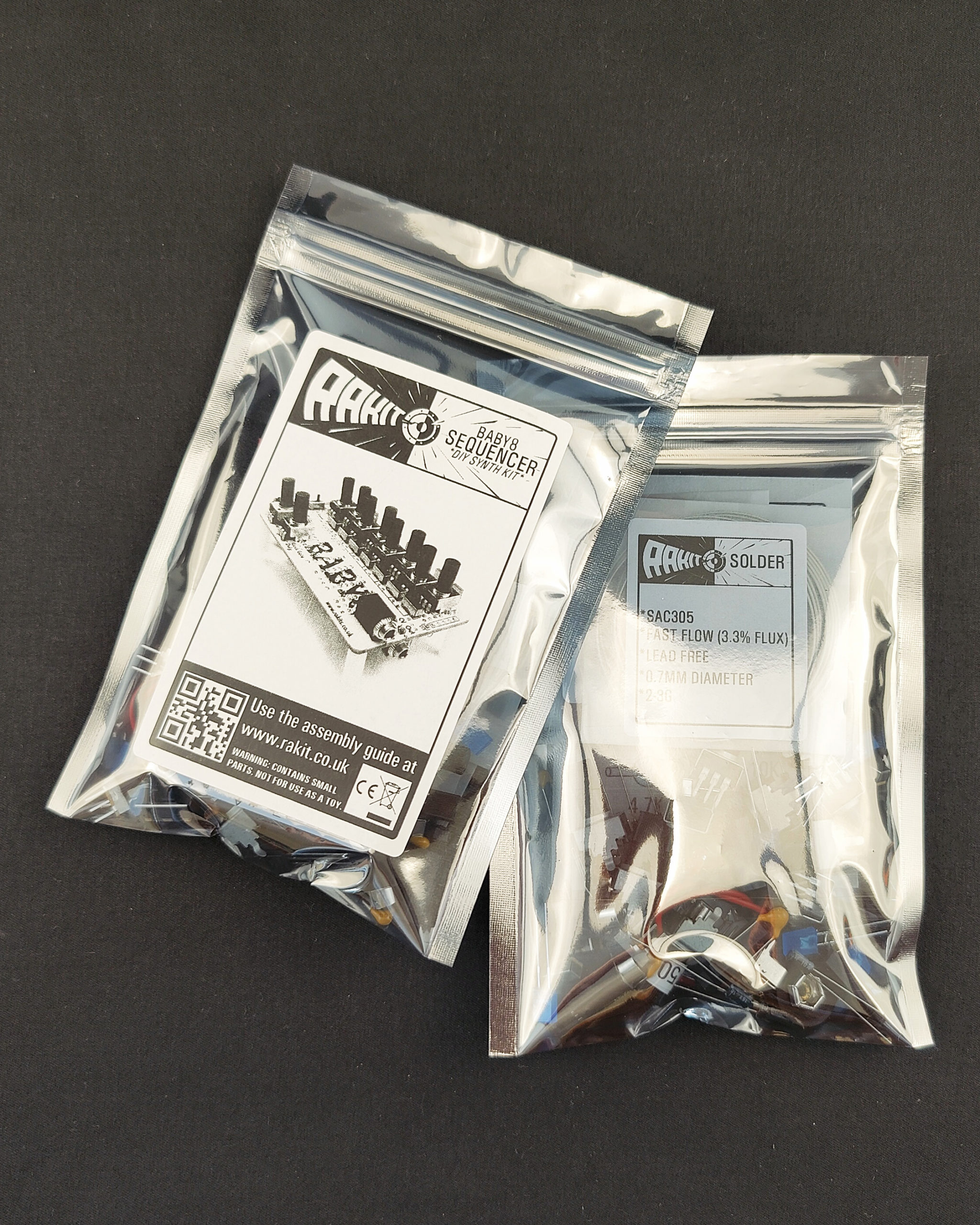

what’s included in the baby8 kit
PCB
4x Stand-offs and nuts
9x 10k Potentiometers
1x 500k Potentiometer
2x 10u Electrolytic Capacitor
1x 4u7 Electrolytic Capacitor
3x 100n Ceramic Capacitor
9x LEDs
2-3g SAC305 Lead free solder
1x Right Angle Switch
8x SPDT Slide Switch
3x Mono Jack
4x 1k0 Resistors
2x 4k7 Resistors
4x 10k Resistors
2x 22k Resistors
2x 33k Resistors
1x 47k Resistor
1x Connector set
3x 100k Resistors
8x 200k Resistors
9x 1N1448 Diodes
1x CD4017
1x CD4093
1x LM324N
1x 78L05 5V Regulator
Battery Snap
( Please Note: Battery Is Not Included)
| Weight | N/A |
|---|---|
| Dimensions | 140 × 100 × 22 mm |
| Add Battery + £2.49 | Yes, No |
KIT CONTENTS
PCB
4x Stand-offs and nuts
9x 10k Potentiometers
1x 500k Potentiometer
2x 10u Electrolytic Capacitor
1x 4u7 Electrolytic Capacitor
3x 100n Ceramic Capacitor
9x LEDs
1x Right Angle Switch
8x SPDT Slide Switch
3x Mono Jack
4x 1k0 Resistors
2x 4k7 Resistors
4x 10k Resistors
2x 22k Resistors
2x 33k Resistors
1x 47k Resistor
3x 100k Resistors
8x 200k Resistors
9x 1N1448 Diodes
1x CD4017
1x CD4093
1x LM324N
1x 78L05 5V Regulator
Battery Snap ( Please Note: Battery Is Not Included)
